AJH and AJS Aluminium hydraulic jacks

Capacity 6.5 - 100 t

Category:

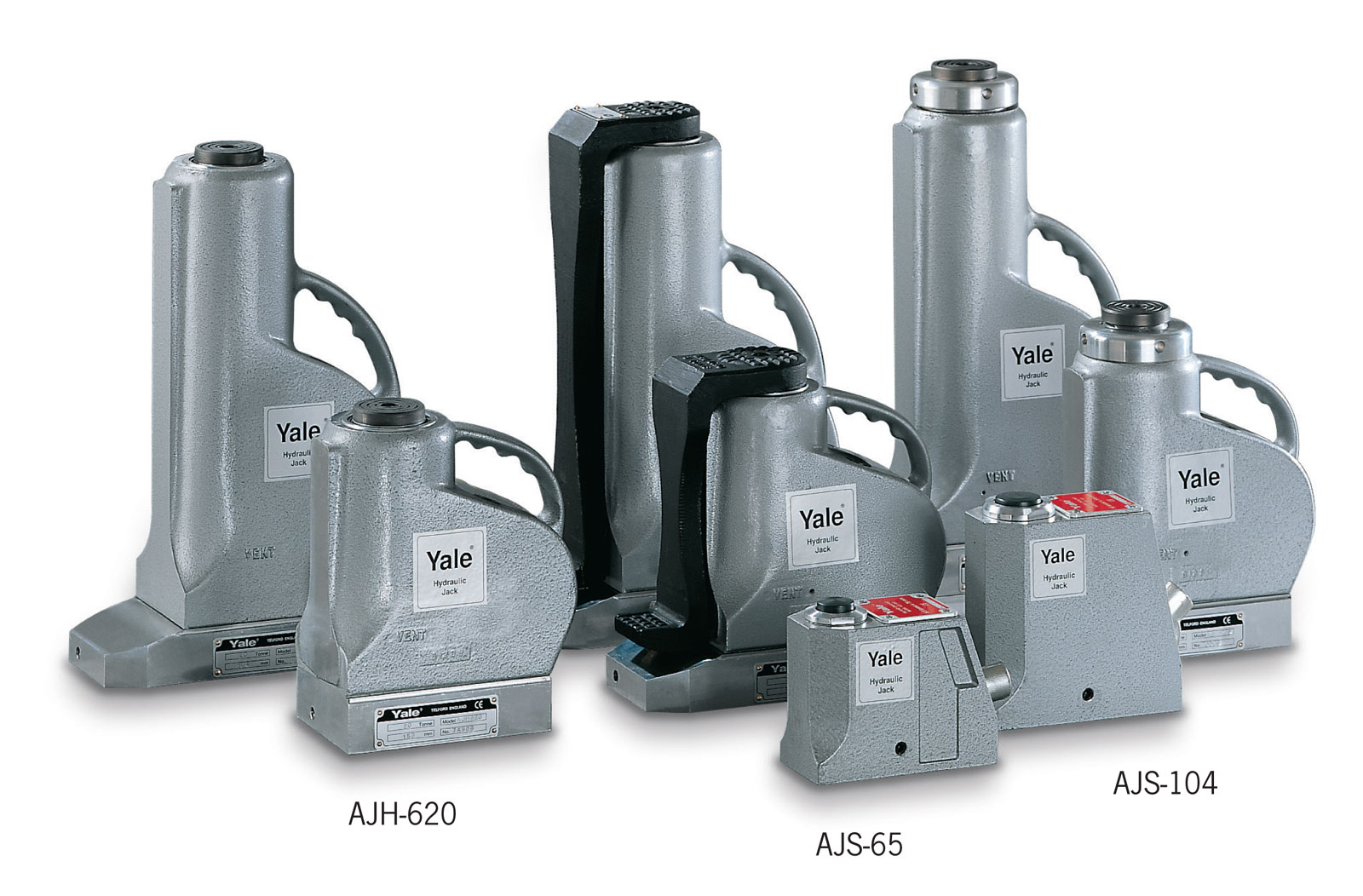

AJH and AJS Aluminium hydraulic jacks

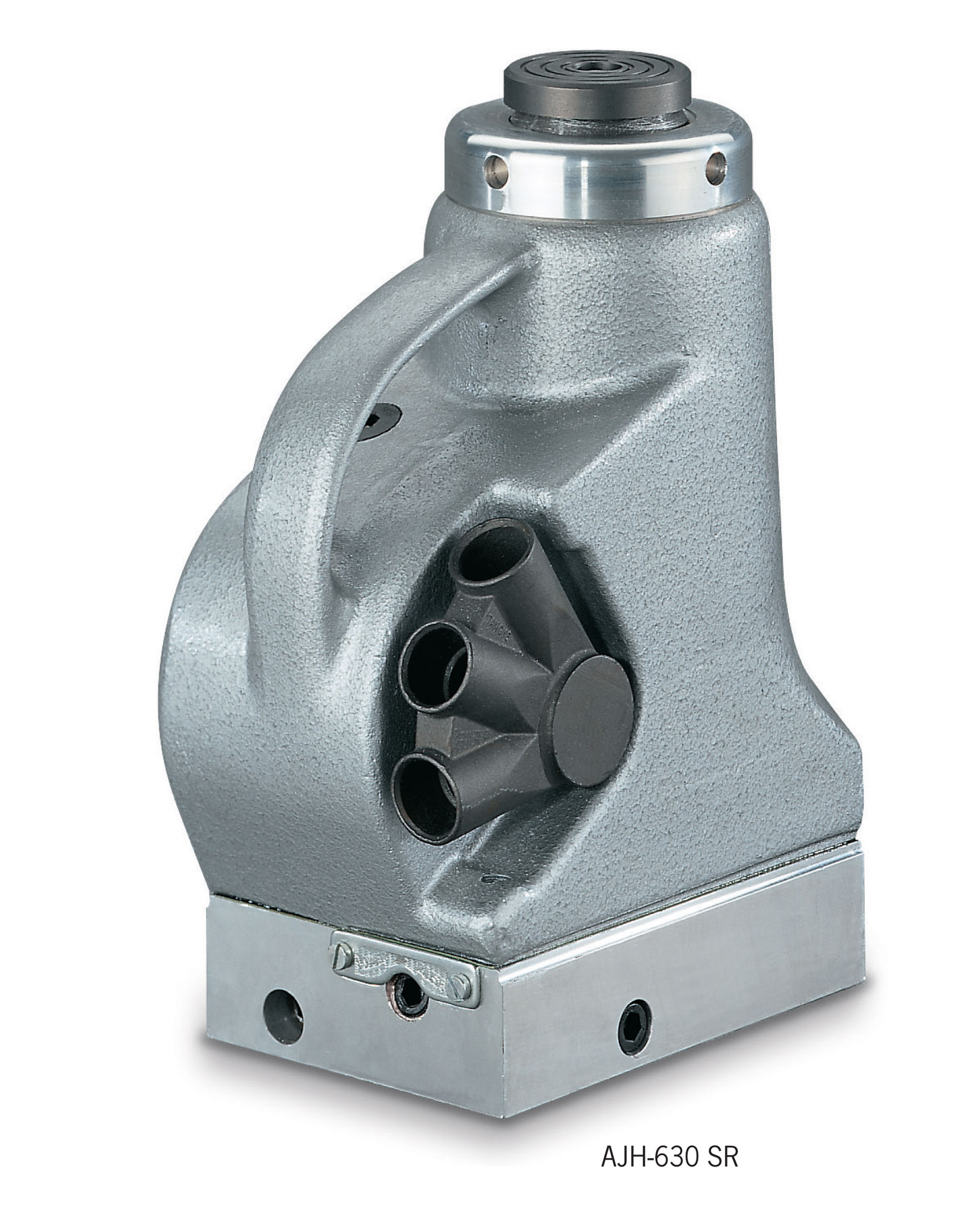

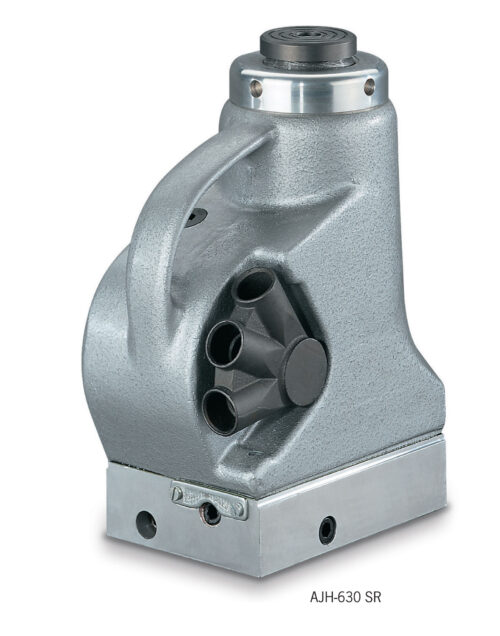

AJH and AJS Aluminium hydraulic jacks - Image 2

Aluminium jacks combine light weight with high lifting capacity. The use of high tensile aluminium alloy allows lifting capacities of up to 100 tons resulting in a very favourable 1.8 tons lifting capacity per 1 kg weight ratio.

Operation of Yale hydraulic jacks is very simple. Jacks are supplied ready for use, i.e. including hydraulic oil, operating lever and, where applicable, carrying handle and lifting claw.

Aluminium jacks with lifting claw

Jacks from 20 tons are available with a lifting claw. In this case the jacks are provided with an elongated base plate.

The max. permissible working load of the lifting claws is 40 % of the jack capacity.

Aluminium jacks with safety lock nut

Jacks from 20 tons can be supplied with a safety lock nut. This device allows absolute safe jacking over a long period. In this case the hydraulic jack can be operated like a mechanical support and the hydraulic system can be totally released.

Application & Features

Application

Hydraulic jacks are universally popular tools for use in workshops or on site for all kinds of lifting and assembly applications, for construction, shipbuilding, power plants, general engineering, metal fabrication and many more.

Applications are unlimited. Standard jacks with plain piston and jacks with safety lock nuts cannot be used with a lifting claw. To increase stability, all jacks with long stroke (305 mm) are equipped with an elongated base plate.

Features

  • Strokes from 75 – 305 mm.
  • Extremely low weight.
  • The 6.5 and 10 tons jacks can be operated in any position (also upside down) and are equipped with spring return piston and stop ring.
  • The 20 to 100 tons jacks can be operated vertically or with front face in horizontal position.
  • All jacks are provided with an overload protection valve.
  • From 20 tons capacity with additional mechanical stroke limiter.
  • All jacks with hardened alloy steel saddle and sensitive lowering valve which is activated by the operating lever.

Technical Data

Technical data AJH and AJS

Model Art.-No. Capacity
t		 Capacity of lifting claw max.
t		 Stroke
mm		 Overall height
mm		 Base plate
mm		 Height of lifting claw min.
mm		 Weight
kg
AJS-65 N13200950 6,5 – 75 131 159 x 76 – 3.6
AJS-104 N13200951 10 – 115 182 171 x 76 – 6.3
AJH-620 N13200952 20 – 152 265 180 x 120 – 10.9
AJH-1220 N13200955 20 – 305 440 250 x 120 – 16.7
AJH-630 N13200958 30 – 152 265 200 x 140 – 15.4
AJH-1230 N13200961 30 – 305 452 275 x 140 – 23.4
AJH-660 N13200964 60 – 152 293 250 x 190 – 27.4
AJH-1260 N13200967 60 – 305 500 340 x 190 – 43.7
AJH-6100 N13200970 100 – 152 315 305 x 250 – 49.0

Jacks with lifting claw

Model Art.-No. Capacity
t		 Capacity of lifting
claw max.
t		 Stroke
mm		 Overall height
mm		 Base plate
mm		 Height of lifting
claw min.
mm		 Weight
kg
AJH-620 C N13200953 20 8 152 280 250 x 120 67 14.5
AJH-1220 C N13200956 20 8 305 452 250 x 120 67 22.2
AJH-630 C N13200959 30 12 152 284 275 x 140 72 20.3
AJH-1230 C N13200962 30 12 305 472 275 x 140 72 31.0
AJH-660 C N13200965 60 24 152 327 340 x 190 72 43.1
AJH-1260 C N13200968 60 24 305 533 340 x 190 72 64.9

Jacks with safety lock nut

Model Art.-No. Capacity
t		 Capacity of lifting
claw max.
t		 Stroke
mm		 Overall height
mm		 Base plate
mm		 Height of lifting
claw min.
mm		 Weight
kg
AJH-620 SR N13200954 20 – 152 291 180 x 120 – 10.9
AJH-1220 SR N13200957 20 – 305 464 250 x 120 – 16.7
AJH-630 SR N13200960 30 – 152 294 200 x 140 – 15.4
AJH-1230 SR N13200963 30 – 305 480 275 x 140 – 23.4
AJH-660 SR N13200966 60 – 152 330 250 x 190 – 27.4
AJH-1260 SR N13200969 60 – 305 536 340 x 190 – 43.7
AJH-6100 SR N13200971 100 – 152 366 305 x 250 – 53.0
